German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge
FLEX81(FX81)
Application: Various liquids with steam, attachments, foaming, condensation water, and ammonia applications
Measurement range: Cable type measuring probes made of 316 up to 75 m in length, rod type measuring probes made of 316L or alloy C22 up to 6 m in length, coaxial tube type measuring probes made of 316L or alloy C22 up to 6 m in length
Structural form: replaceable cable (ø 2 mm, ø 4 mm)
Replaceable rod (ø 8 mm, ø 12 mm)
Coaxial tube (ø 21.3 mm, ø 42,2 mm)
Process connector: threaded, starting from G three-quarters, three-quarters NPT, flange, starting from DN 25.1 "
Process temperature: -60 ° C? 6?8 +200 ℃
Process pressure: -1? 6?8 +40 bar(-100 ?6?8 +4000 kPa)
Measurement accuracy: ± 2 mm
Signal output: 4 .. 20 mA/HART, Profibus PA,Foundation Fieldbus
Display and operation: PLICCCOM, PACTware, VEGADIS 81, VEGADIS 82
License: ATEX, IEC, FM, CSA, EAC (GOST), UKR Sepro, Overflow Protection, Shipbuilding, SIL2, FDA
Advantages:? The 7-4 extensive diagnostic methods ensure easy maintenance operation, resulting in high equipment availability
Due to the truncated probe, standardization and high flexibility can be easily achieved during planning
| FTW31-A1A3AA4A L=800mm | 1 | E+H |
| FTW31-A1C2FB4A L=200MM | 2 | E+H |
| FTL31-AA4U3BAWSJ | 5 | E+H |
| 1003-WPSA-CI-YZ-LH-VX-240VAC | 4 | P+F |
| EPV-4-SA-00 | 4 | P+F |
| PS69.AXCFBAHXAMAXX | 1 | VEGA |
| PMP23-AA1U1SB3CJ | 1 | E+H |
| PMP23-AA1U1PB3CJ | 1 | E+H |
| FMD78-5B17HE1AR1B4+PD Capillary : 5 M | 1 | E+H |
| TMR35-A1BBDBAA1AAA | 3 | E+H |
| FTE30-ABCA | 2 | E+H |
| FTL31-CA1U2AAXCJ | 4 | E+H |
| 266DSHFSSB2B1V2E1B2 | 1 | ABB |
| PS64.AXTTCAHXKMXXX | 2 | VEGA |
CAL62.XXBGAHKMXX L=800mm
Insulation length=72mm | 1 | VEGA |
| FMR10-AAQBMVCEVEE2 | 1 | E+H |
| FTL31-AA4M3BAWSJ | 3 | E+H |
| FTL31-AA4U3BAWSJ | 1 | E+H |
| PMP23-AA1U1PB3CJ | 1 | E+H |
| FTL31-AA4U3BAWDJ | 1 | E+H |
FTI51-AAB1RGJ43A1A+1 L=100mm
(Tag plate stainless steel 52006326 blank) | 2 | E+H |
|
|

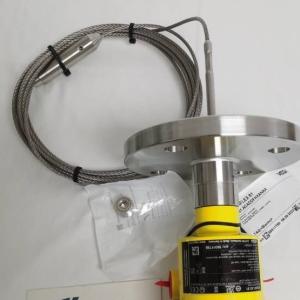

German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge Images
|
